DATA CABLES | PROFINET | INDUSTRIAL ETHERNET | PROFIBUS | CANOPEN | DEVICENET

Many different data cables are available on the market. In many applications standard data cable does not lead to the desired result or a machine uses Industrial Ethernet or a fieldbus. The Industrial Ethernet cables from ESCHA are available in 4-pole or 8-pole M12x1 connections.

Different cables

ESCHA has different cables for different applications in the range. ESCHA has cables for the following fieldbuses: Profibus, ModBus, CANopen and DeviceNet. Ethernet / IP, PROFINET, EtherCAT, Modbus-TCP, POWERLINK are Industrial Ethernet cables.



View data cables Ask your questions about data cables

Products ESCHA - Cables and connectors
Data cables | ESCHA

INDUSTRIAL ETHERNET CABLES

Industrial Ethernet cables can be found in every appliance or workplace. ESCHA ethernet cables are available in 4-pole (D-coded) or 8-pole (X-coded) M12x1 connections. Just as chassis connections, interface components and circuit board components. RJ45 patch cords ensure the high quality of data transfer. Ethernet cables are available in the following categories: patch cables Cat5e, patch cables Cat6A, and patch cables Cat7.

RJ45, M8 & M12

Ethernet cables support the following protocols: PROFINET, Ethernet Powerlink, Ethernet/IP and EtherCAT Sercos. The cables are available in M12, M8, RJ45 and as connectors, chassis parts or receptacles with sealing up to and including IP68.



View industrial ethernet cables

PROFIBUS CABLES

Profibus cables must comply with the Bus-specific requirements of the Profibus/profinet organisation (PNO). ESCHA cables are in compliance with these requirements and available in 5-pole (B-coded), M12, T-splitters and Y-splitters, connectors, chassis parts or receptacles with sealing up to and including IP68.









Profibus Cables | ESCHA
RJ45 data cables | ESCHA

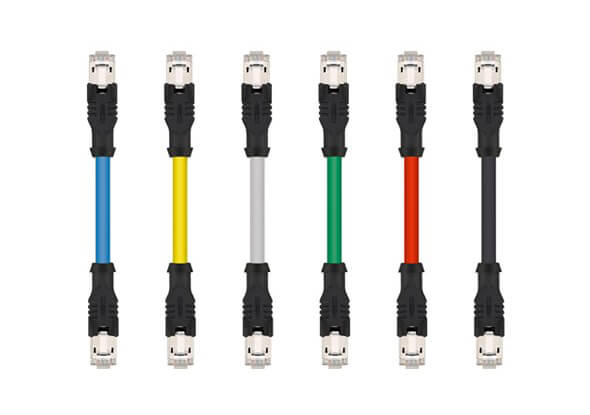

RJ45 Cables

RJ45 patchcords are specially made for industrial applications (for switch boxes, for example). The cables are available in PVC cable quality for Cat 5e applications and in FRNC cable quality (fire resistant) for Cat 6A applications. AWG26 cables are available in grey, black, yellow, red, blue and green in lengths of 0.3m to 50m.



VIEW RJ45 CABLES





CANopen cables & DeviceNet cables

User organisation ODVA requires CANopen cables and DeviceNet cables to have:

  • 5-pole M12 connections
  • a PUR cable
  • halogen-free cables, chassis parts or receptacles
  • shielded cables
  • twisted cables for warning signals and power supplies with stripped cable ends

CANopen cables and DeviceNet cables are equipped with UL-certification and can handle a resistance of up to and including 120 minutes. The cables are available in 5-pole (B-coded), M12, T-splitters and connectors, chassis parts or receptacles with sealing up to and including IP68.



VIEW CANOPEN CABLES AND DEVICENET CABLES

CANopen and device net | ESCHA
Shielded cables | ESCHA

SIMPLY SUPERIOR DATA TRANSFER THANKS TO 'SHIELDED' CONCEPT

ESCHA patch cables carry data from Point A to Point B with less data loss. Why do they lose less data? ESCHA cables are 360 degrees shielded: they are equipped with an extra casing according to the patented two-shell shielding concept.

Data loss

In the connector, the patch cable loses the most data. Despite the fact that most patch cables these days contain a casing that protects them from data loss, these casings only run through the cable. ESCHA patch cables are shielded a long way into the connector, whereby the patch cables sustain less data loss.
